1 PHASE | 3 PHASE | |
---|---|---|
Power | 7kW / 11kW | 7kW / 11kW / 22kW |
Dimensions (HxWxD) (mm) | 376x211x153 | |
Mounting type | Wall Mount / Standalone Pedestal | |
Display | LED Strip | |
Weight | 2.9 kg@With Socket / 4.95kg@With Cable | |
Cable length | 5m (Option) / Socket type | |
ELECTRICAL VALUES | ||
Input voltage | 230V ± %10 | 400V ± %10 |
Input frequency | 50Hz/60Hz | |
Precision | Level 1 | |
Output voltage | 220VAC ± %10 | 380VAC ± %10 |
Output current | 7kW/32A, 9kW/40A | 22kW/32A |
Self-consumption | < 2W | |
FUNCTIONAL DESIGN | ||
Standards | CE, IEC 61851 & IEC 62955 | |
User interface | Emergency off button / LED warning lights / RFID | |
Safety features | Overvoltage protection, Overload, Overcurrent protection | |
OPERATING CONDITIONS | ||
Operating temperature | -30°C ~ +55° C | |
Operating humidity | %5 ~ %95 | |
Operating altitude | < 2000 m | |
Protection class | IP65 | |
Cooling | Doğal soğutma | |
Special protection | Anti-UV protection |
Chargers have a modern design and a user-friendly interface. The modular design makes the charger easy to use. It provides ease of use and maintenance.
PRICING OPTIONS
1 PHASE | 3 PHASE | |
---|---|---|
Power | 7kW / 9kW | 7kW / 22kW |
Input frequency | 50Hz/60Hz | |
Dimensions HxWxD (mm) | 320x210x140 | |
Mounting method | Wall mounted | |
Display | 5 inch LCD | |
Weight | 11kg | |
Cable length | 5 meter | |
ELECTRICAL VALUES | ||
Input voltage | 230V ± %10 | 400V ± %10 |
Input frequency | 50Hz/60Hz | |
Precision | Level 1 | |
Output voltage | 220VAC ± %10 | 380VAC ± %10 |
Output current | 7kW/32A, 9kW/40A | 22kW/32A |
Self-consumption | < 2W | |
FUNCTIONAL DESIGN | ||
User interface | Emergency switch off button / LED warning lights / RFID | |
Safety features | Over voltage protection, Under Voltage protection, Over load Leakage Current, Earth protection, Over temperature protection, Lightning protection | |

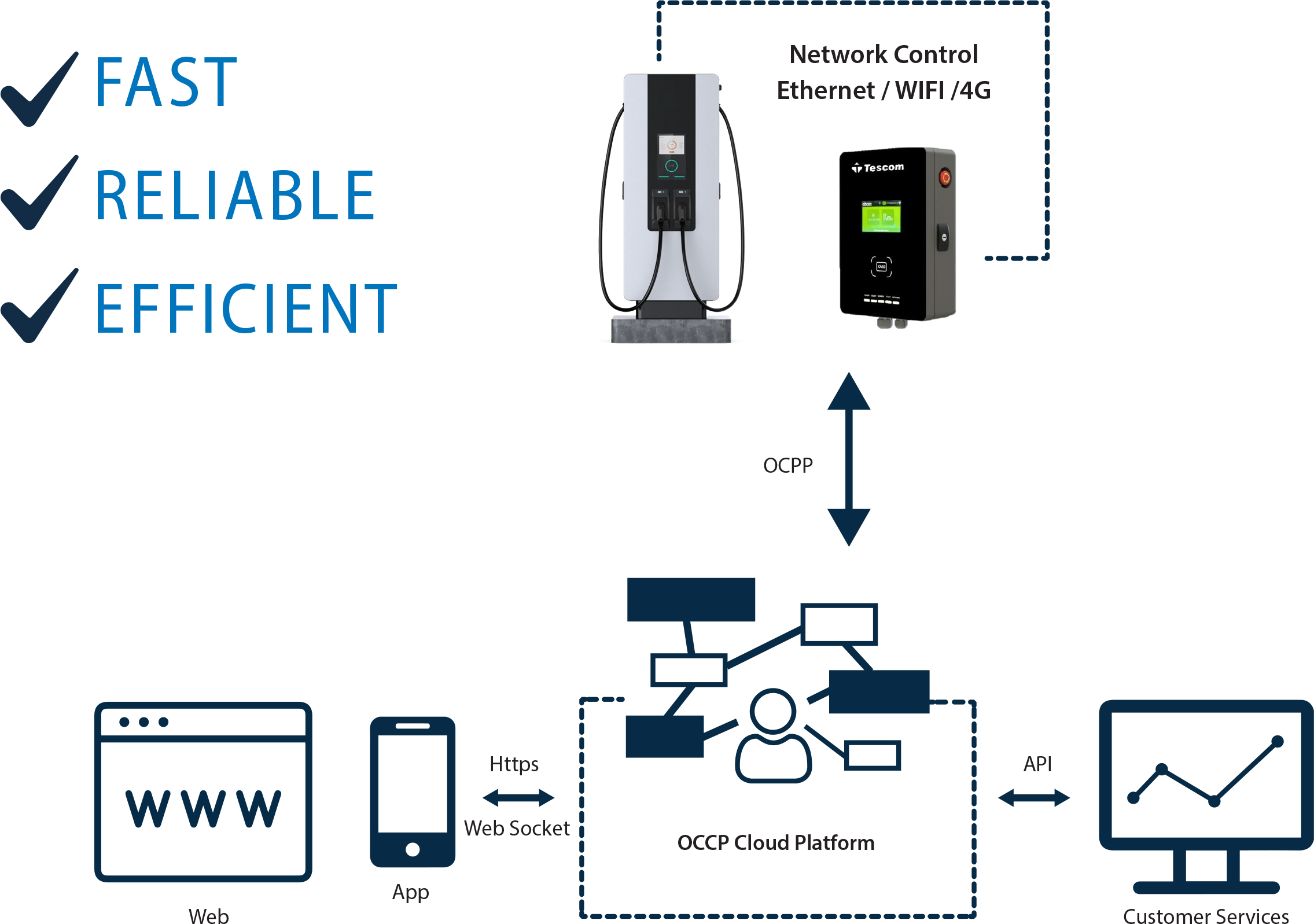

Internet interface | Ethernet (WIFI, 3g/4gLTE option) | |
OCPP | OCPP1.6J | |
OPERATING CONDITIONS | ||
Operating temperature | -30°C ~ +55° C | |
Operating humidity | %5 ~ %95 | |
Operating altitude | < 2000 meter | |
Safety standard | IEC61851-1/2017 | |
Protection classProtection class | IP55IP55 | |
CoolingCooling | Natural coolingNatural cooling | |
Special protection | Anti-UV protection |
