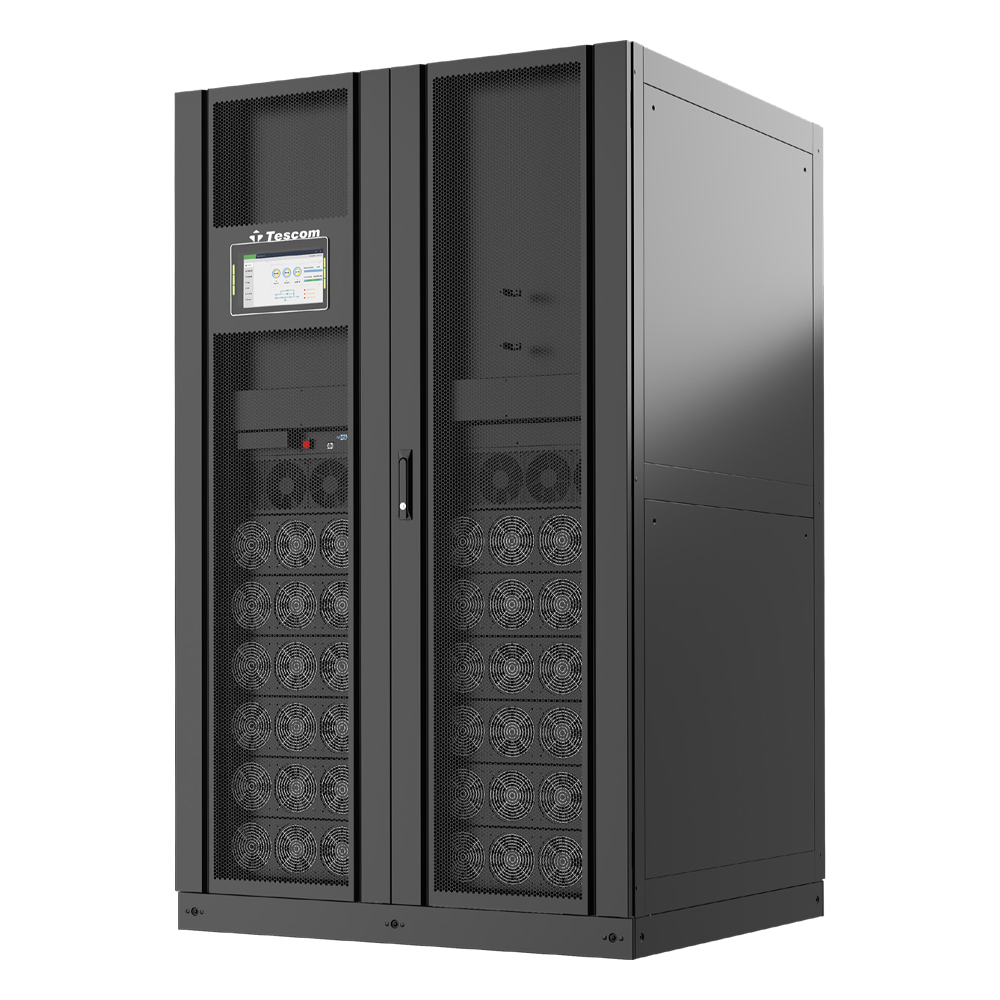

MTW1000 MODULAR UPS

MTW1000 Modular UPS are online devices produced with 3-level and DSP technology that provide low THD with high input power factor designed for sensitive loads. Thanks to its hot-swappable modular structure, it has the flexibility to operate at powers between 100 and 1200kVA with a single cabinet. It offers the most suitable power solutions for large data centers and sensitive electronic devices. Thanks to its parallelizable design, which takes up less space, it provides the opportunity to reach maximum capacity of up to 3.2MW. It stands out with its rack type design, high power density, user-friendly interface, 10” inch graphical touchscreen, intelligent sleep function and smart charge management.

• COMPACT DESIGN
  1200kVA in one cabinet, saving valuable room space
• HIGH POWER DENSITY

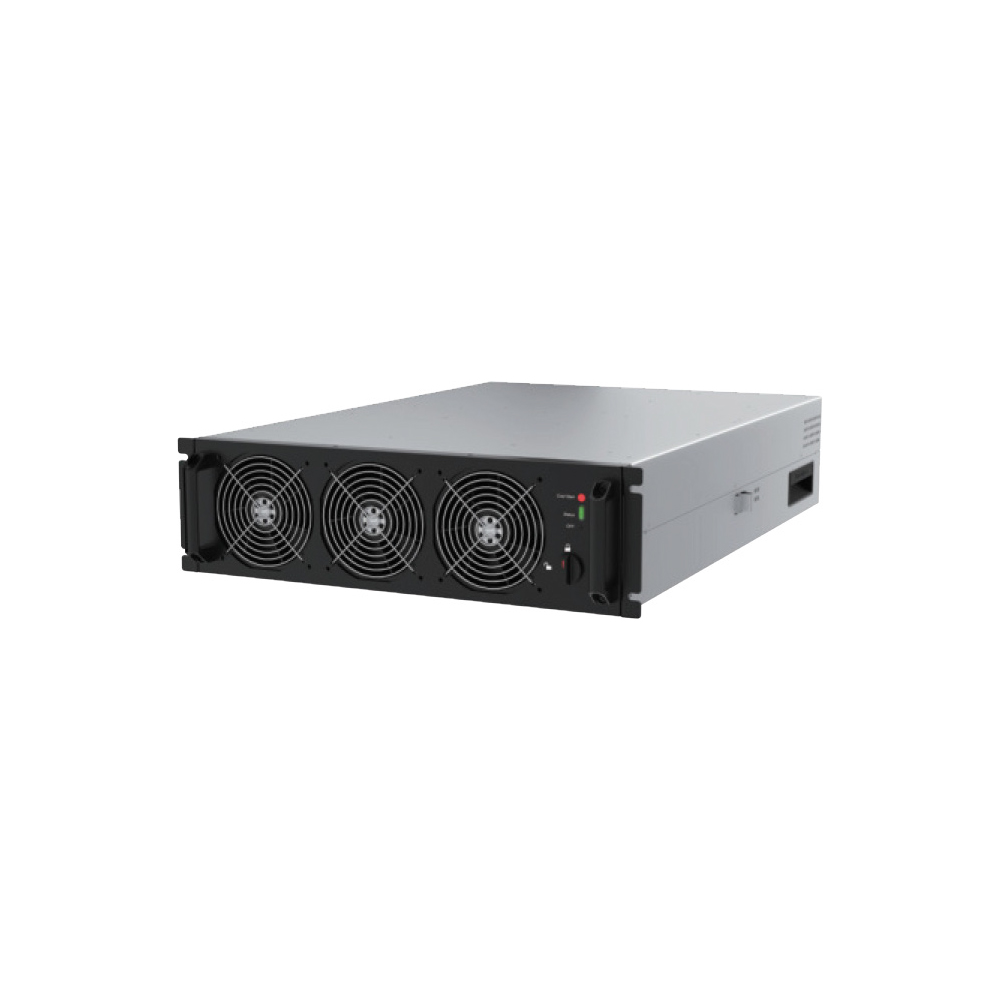

  100kVA power module, easy for capacity expansion
• HIGH EFFICIENCY
  Advanced 3-level technology quarantees high efficiency operating in double conversion mode up to up to 96.5%; Battery Mode up to 96.5%
• INTELLIGENT CHARGING MANAGEMENT
  The system intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery
• HIGH SCALABILITY
  The system can be configured from 100kVA to 1200kVA in one single cabinet, Maximum capacity of up to 3.2MW
• USER FRIENDLY HMI
  10” touch color LCD with graphic display, IoT function1
• SMART SLEEP FUNCTION
  System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
• RELIABLE AND ADAPTABLE
  Fully digital control, flexible and robust. High reliability and environmental adaptability, with protection of components level.
