DC Braking Module

• Contactor and IGBT Controlled Structure
• Max. Protection in Regenerative Loads
• In-Built Cooling Fans

They are braking resistor modules that aim to ensure maximum protection of your critical loads by increasing the operating performance of the device in re-generative loads such as CNC Machines, Electric motor loads, and to reduce your cost of ownership by extending the working life of durable materials such as batteries and capacitors.

Show More

Areas of Usage

Product Images

DC Braking Module

DC BRAKE UNIT FOR RE-GENERATIVE LOAD

Max. Protection in Regenerative Loads, Contactor and IGBT Controlled Structure, In-Built Cooling Fans

TESCOM offers solutions for all types of UPS with different braking modules according to the appropriate UPS power.

An example of such loads is electric motors. Electric motors draw current from the network while rotating, but in case of a sudden force (braking effect) they start to produce electricity themselves, this energy is sent back to the source they are fed.

If the electric motor is supllied by the UPS, in the braking mode, the UPS applies extra energy to the DC BARA through the reverse diodes of the output power transistors, which causes the DC BUS voltage to rise.

By connecting to the DC bus of the UPS, when the allowable limit value in DC rises is exceeded, it activates the resistor loads with the help of contactors driven by a transistor on it, providing the necessary voltage drop and converting the excess energy into heat energy.

In regenerative load applications (CNC Machines, Electric Motor Loads), it is recommended to use a DC Brake Unit in order to absorb the DC voltage that is pressed back into the mains (UPS) during braking.

DC Brake Unit for Re-Generative Load
DC Brake Unit for Re-Generative Load
UPS POWERXT SERIES STOCK CODECHASISDS-DX SERIES STOCK CODECHASIS

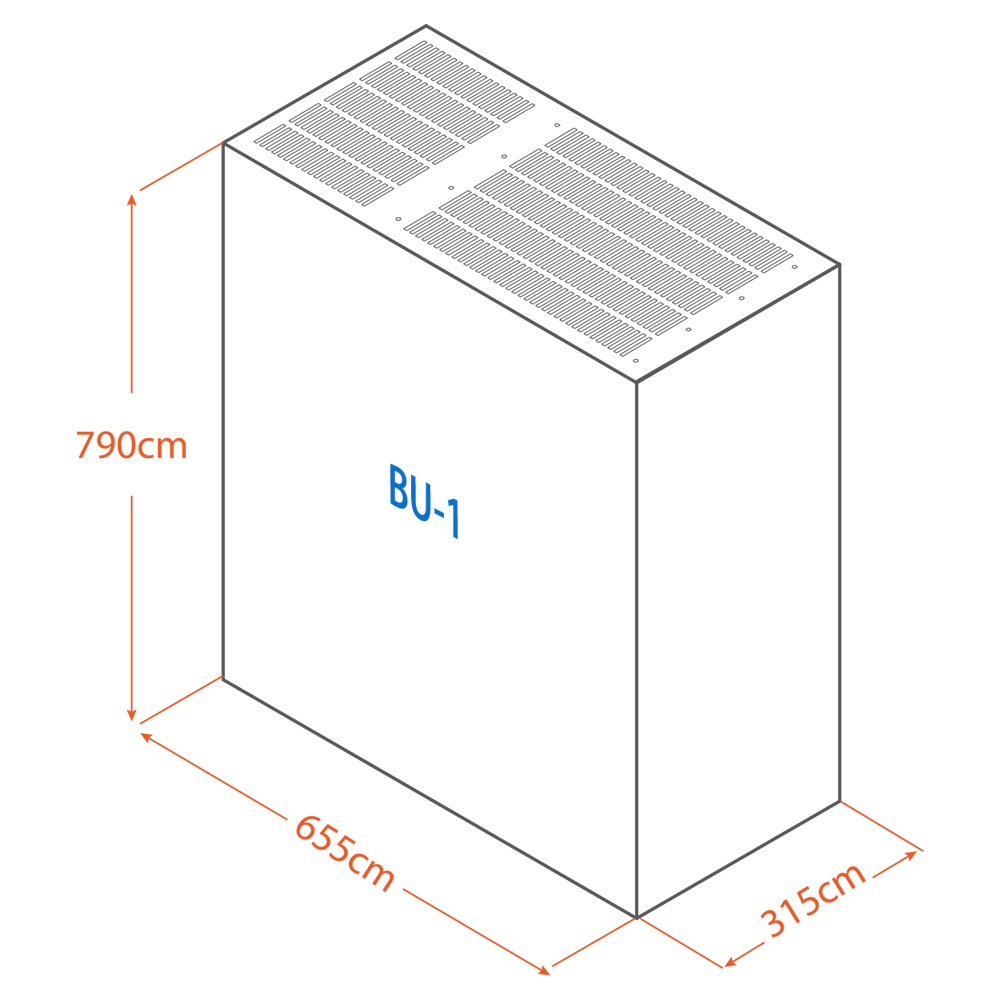

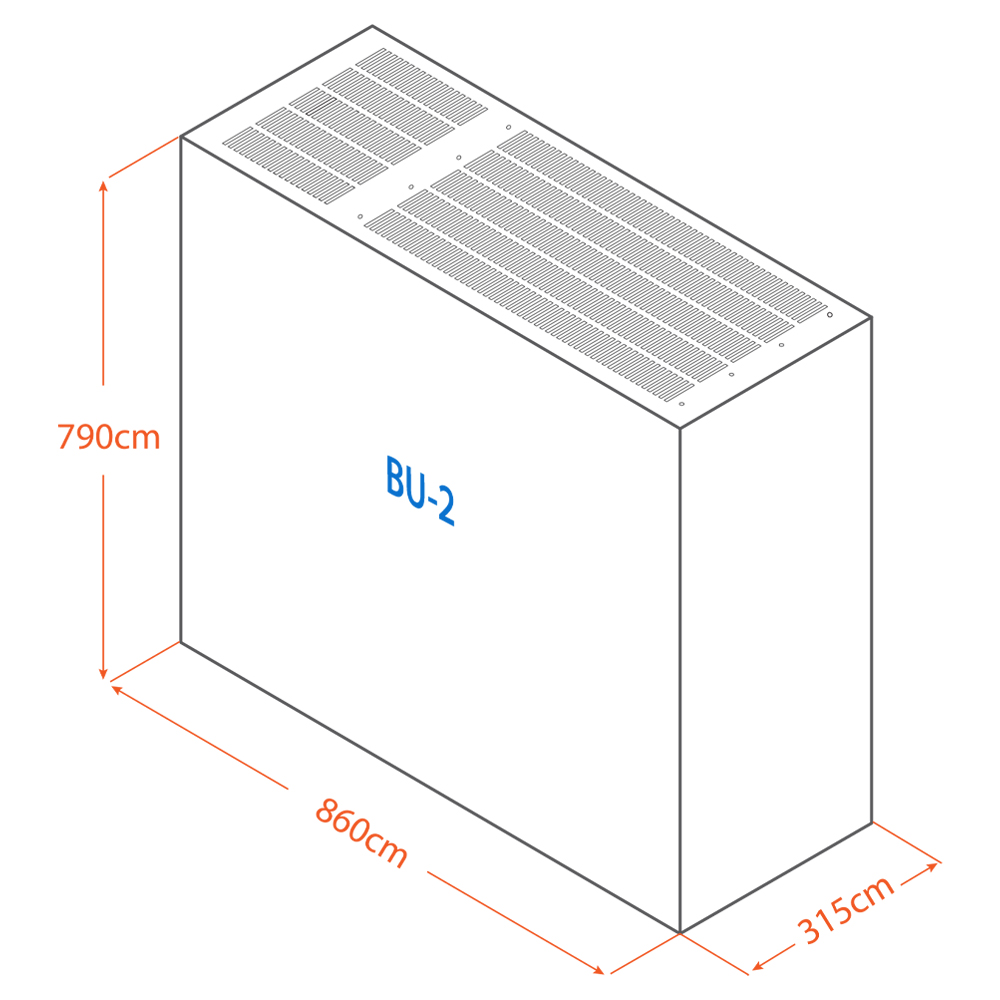

15KVApls. askBU-1852010491BU-1
30kVA852010424BU-1852010424 BU-1
40kVA852010299BU-1 852010422 BU-1
60kVA852010283BU-1852010429BU-1
80kVA852010282BU-1852010456BU-1
100kVA852010308BU-1852010416BU-1
120kVA852010281BU-1852010432BU-1
160kVA852010309BU-1852010454BU-1
200kVA852010316BU-1852010418BU-1
250kVA852010455BU-2852010457BU-2
300kVApls. ask852010433BU-2
400KVApls. ask852010414BU-2
500KVApls. ask2 X 852010457BU-2
600KVApls. ask2 X 852010433BU-2
